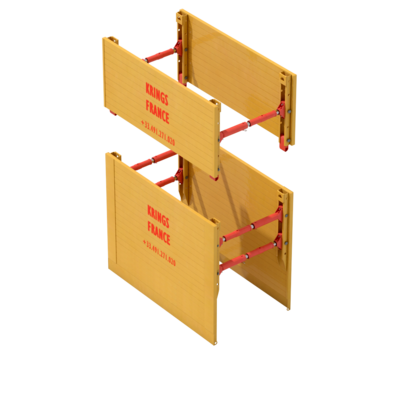

Standard box KS60
This compact box combines robustness and lightness.
Its handiness and its resistance allow a user-friendliness work in shallow or deeper excavations. The spindles used on this box are those of the range known as “heavy” and allow a descent of the system by “cutting, digging & pushing down” while excavating. Widths are variable with suitability thanks to the extensions pipes that are simply “plugged-in” into the spindle.
The thickness of these panels (60 mm) makes it possible to maximize clearance of work and to limit the floor space of the excavated trench.
|Unit length||2.00 m - 3.50m|
|Height base box||2.40 m|
|Height top box||1.30 m|
|Pipe clearence||Max. 1.35 m|
|Weight||1120 kg - 1710 kg|
|Depth recommended||Up to 4.00 m|
|Handling machine||Excavator : 12 - 18 tons|
